Alerts, Data & Real-World Performance

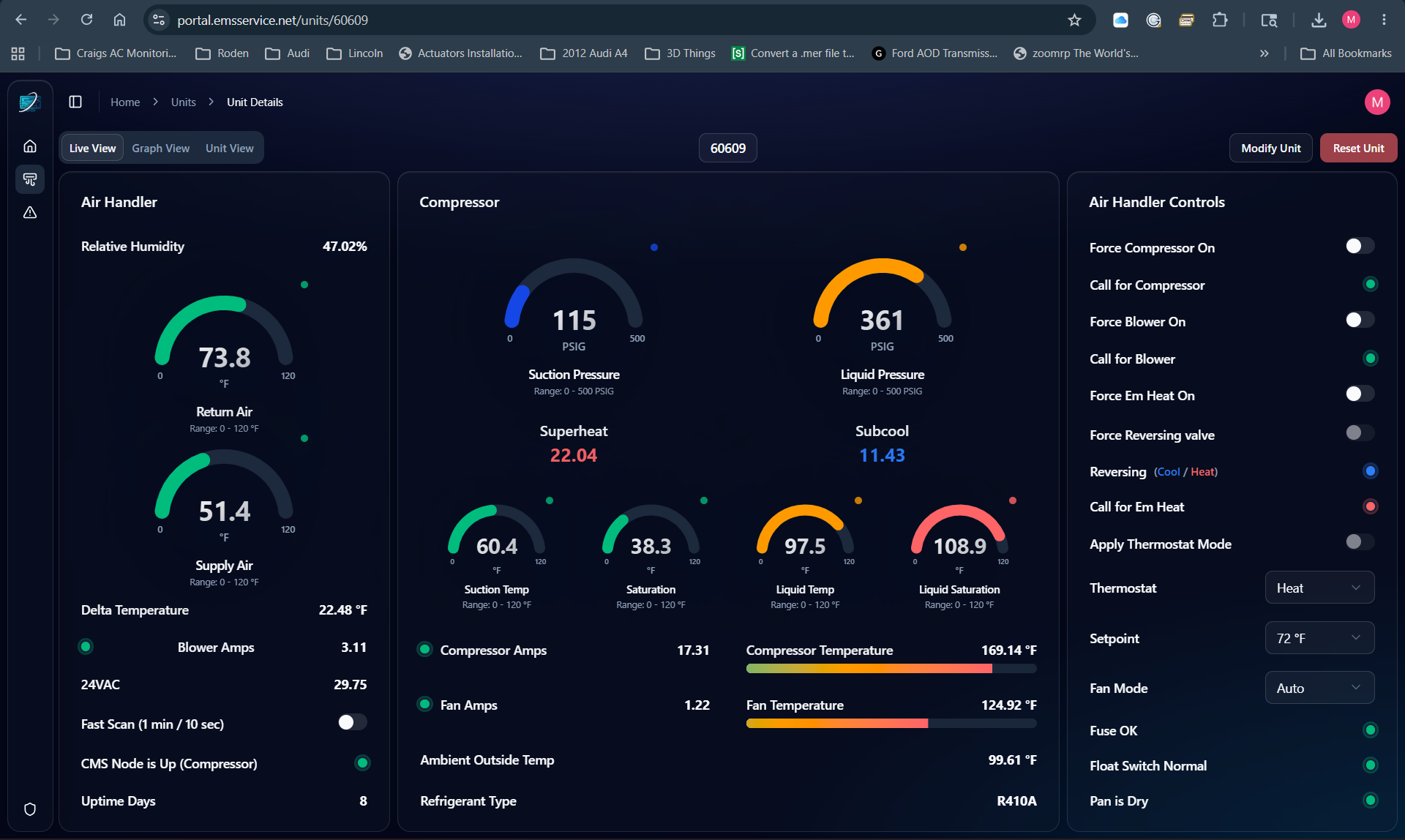

See EMS in action — complete alert code reference, sample alert email, remote thermostat mode, and dashboard screenshots.
EMS monitors more than 14 pre-programmed alert types and uses Predictive Analytics to alert you of events before they happen. New alerts and custom thresholds can be added per user preference. Below is the complete alert reference and a real sample alert email.
| Code | Alert Name | Issue Detected | Message Sent to Service Provider / Property Manager |
|---|---|---|---|
| 1 | Offline | EMS module offline | The EMS control module has gone offline. Possible power or Internet failure. |
| 2 | 24V Fuse | 3A fuse is blown | The system fuse has blown. |
| 3 | 24V Range | 24V is low or high | The 24VAC is out of range — possible short or transformer failure. |
| 4 | Float SW | Float switch active | The float switch has engaged. Probable drain clog. |
| 5 | Pan Wet | Lower pan is wet | The lower pan is wet. Drain AND float switch issue. |
| 6 | Temp High | Inside temp too high | The inside temp is too high. The AC may not be running. |
| 7 | RH High | Humidity too high | The humidity inside the building is above threshold. |
| 8 | CMP Fault | Compressor fault | Call for cool and no compressor motor current (possible limit switch). |
| 9 | Blower Fail | AH blower motor fail | Call for blower and no blower motor current. |
| 10 | Peak Pressure | Peak pressure above threshold | The peak pressure is above threshold. Possible short cycling and cooling issues. |
| 11 | Delta T Fault | Delta temperature abnormal | The delta temp is below norm. Possible frozen evaporator coil or airflow issue. |
| 12 | Refrigerant Leak | Refrigerant leak detected | Compressor running with no or low pressure. |
| 13 | Reversing Valve | Rev valve fault | Reversing valve powered but temperature shows to the contrary. |
| 14 | CMP Contactor | Contactor failure | Contactor powered, but no motor current — check limit switches. |
Delivery Methods
- Email alerts to up to 3 email addresses
- SMS text alerts to up to 3 phone numbers
- Target destinations defined by Service Provider or Property Manager
- Some thresholds individually customizable (temp, humidity, etc.)
CRM Integration
- Service orders automatically opened in ServiceTitan or Jobber
- Tickets ready for review immediately upon alert trigger
- Full customer account, location, and alert details pre-filled
Your account's AC monitoring service has detected an alert condition. See below for details and take appropriate action.
If you have subscribed to ServiceTitan or Jobber CRM, a service ticket has automatically been opened and is ready for review.
EMS Thermostat Mode remotely replaces a failed local thermostat, keeping a system cooling a vacant property until a technician arrives. Preconditions verified before activation:
- Fuse confirmed OK — 24V not blown
- Float switch in normal position — no drain clog
- Pressures and motor operation confirmed via remote bidirectional testing
- Confirmed: no call for cool from local thermostat — thermostat failure verified
- Thermostat Mode activated with agreed setpoint — system keeps cooling until on-site repair
Want to See a Live Demo of the Dashboard?
We'll walk you through a real monitored site and show you how alerts, trends, and remote controls work in practice.
